Cyclotron X-Ray Experimental Furnace Heaters
Ph.D. Collaborative Research Project
Design holders and processes for various X-ray experiments with similar environmental quality to a glove box.
Design holders and processes for various X-ray experiments with similar environmental quality to a glove box.

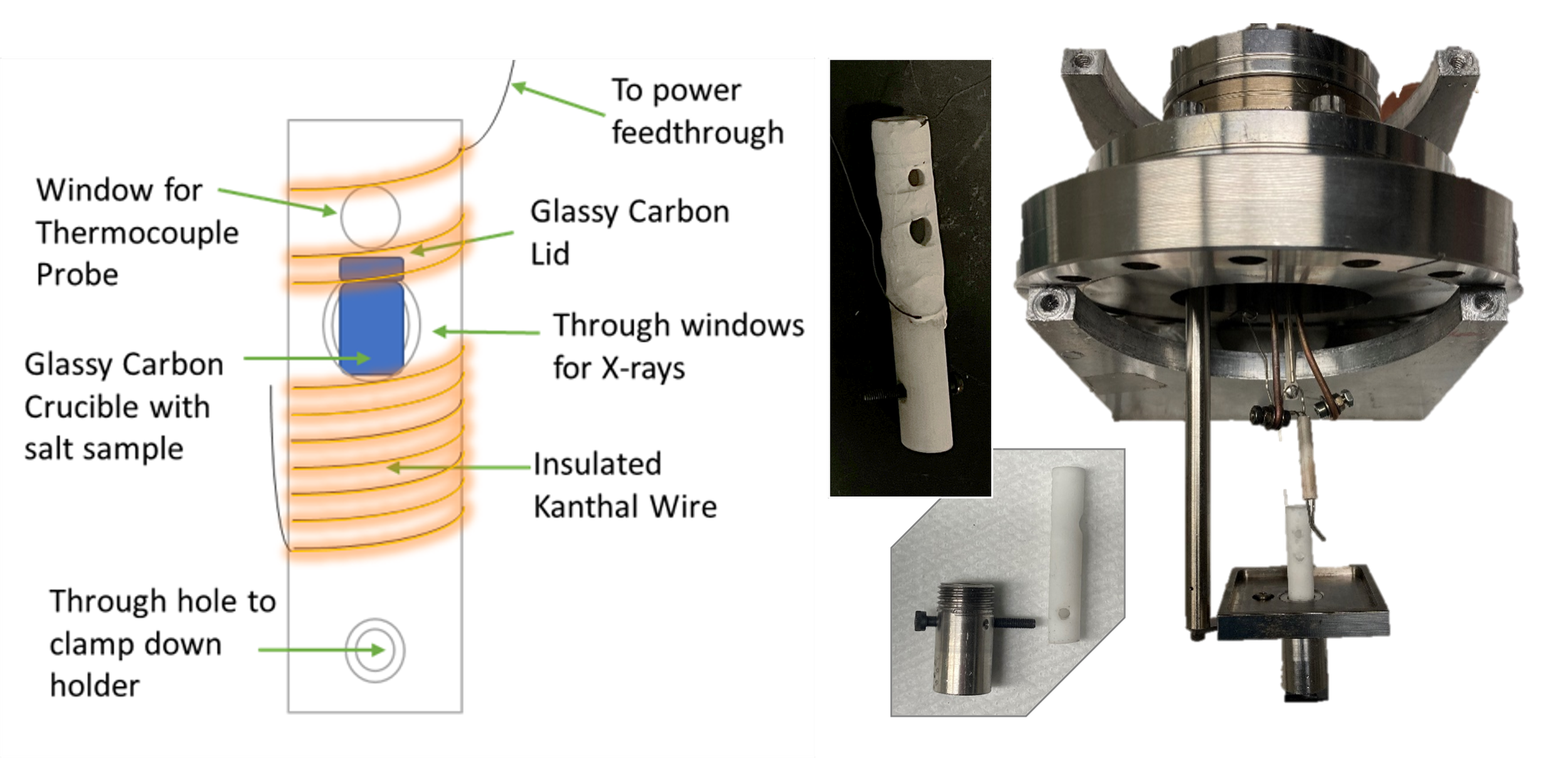

PPDF X-Ray Scattering Heater & Holder
Custom fabricated heater and sample holder for PDF (Pair Distribution Function) X-Ray Scattering Experiments.
3D Printed Ceramic Base
Kanthal Wire Pasted in Place for Supplying Power
Holes for Thermocouple and Mounting Ceramic to Structure
Kanthal Wire Pasted in Place for Supplying Power
Holes for Thermocouple and Mounting Ceramic to Structure

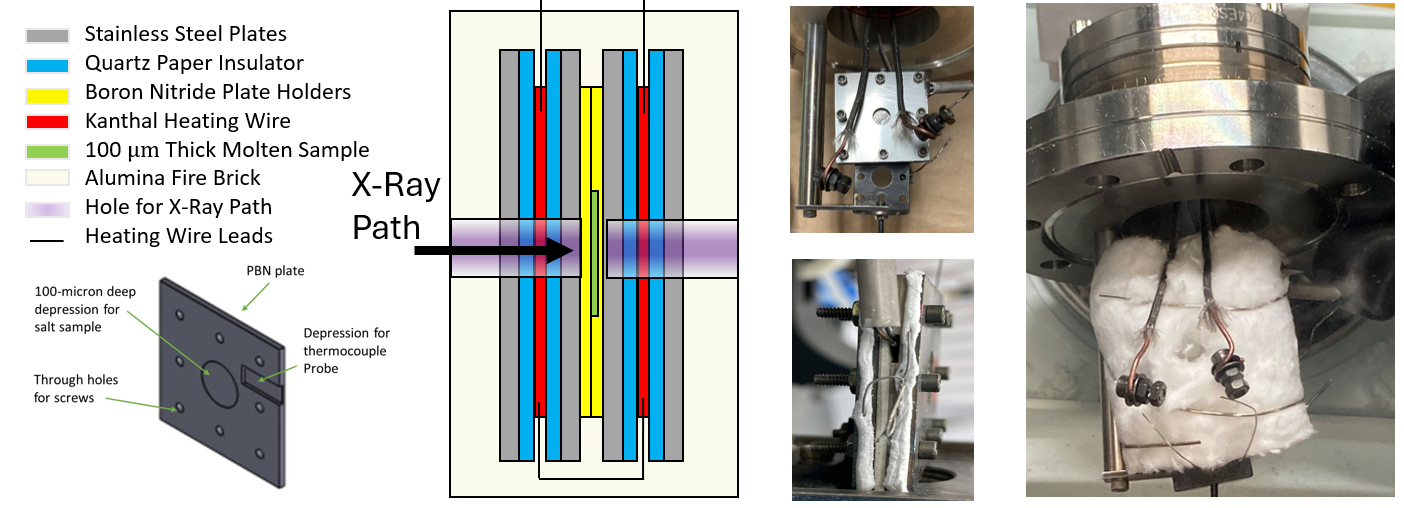

EXAFS & XANES X-Ray Scattering Heaters & Holders
PBN (Pyrolytic Boron Nitride) plate holder with wound Kanthal wire heater to hold thin (0.01mm) liquid salt samples
at elevated temperatures (600 to 800°C).
Custom PBN Plates for Holding Samples
Specialized Sample Preparation Process to Guarantee Sample Fills PBN Indent
Dual-Side Heater Assembly Sandwiching PBN Sample Holder for Even Heating
Holes for Thermocouple and Mounting Ceramic to Structure
Specialized Sample Preparation Process to Guarantee Sample Fills PBN Indent
Dual-Side Heater Assembly Sandwiching PBN Sample Holder for Even Heating
Holes for Thermocouple and Mounting Ceramic to Structure
